CCTV, NVR, SECURITY SYSTEMS

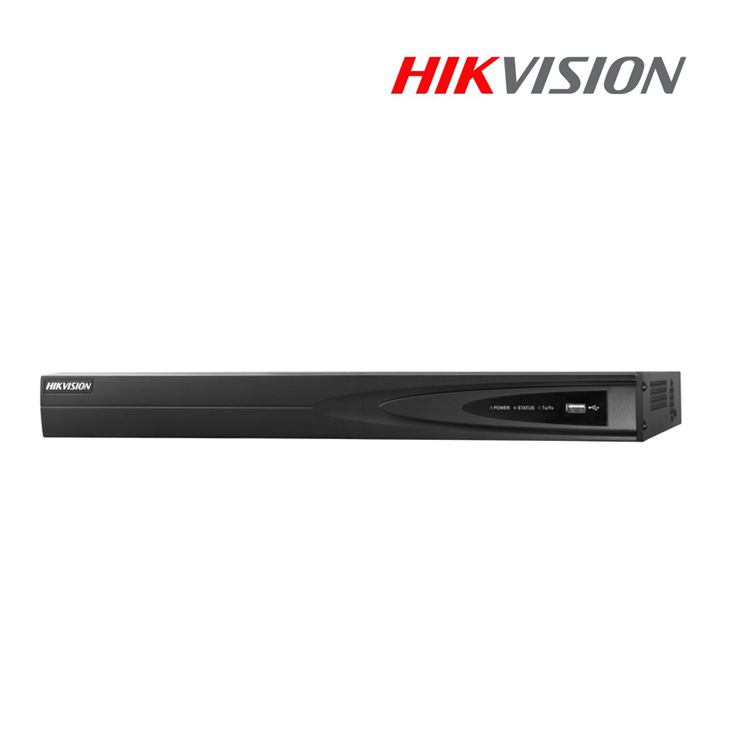

DS-7608NI-K1 , HIKVISION Embedded 8K NVR
- H.265/H.264/H.264 video formats
- Connectable to the third-party network cameras
- Up to 16 IP cameras can be connected
- Recording at up to 8 MP resolution
- Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output - HDMI/VGA outputs provided
- HDMI Video output at up to 4K (3840 × 2160) resolution
රු76,541.00
80Mbps Bit Rate Input Max (up to 8-ch IP video), 1 SATA interface, standalone 1U case
ABOUT
| Video/Audio input | |
|---|---|
| IP video input | 8-ch |
| bandwidth | 40 Mbps |
| Outgoing bandwidth | 80 Mbps |
| Video/Audio output | |
| HDMI output resolution | 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA output resolution | 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Decoding format | H.265/H.264/H.264 |
| Recording | |
| resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CI F/CIF/QCIF |
| Synchronous playback | 8-ch |
| Capability | 4-ch @ 1080p |
| Network management | |
| Network protocols | TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Hard disk | |
| SATA | 1 SATA interface for 1HDD |
| Capacity | Up to 6TB capacity for each disk |
| External interface | |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network interface | 1 RJ-45 10 M/100 Mbps self-adaptive Ethernet interface |
| USB interface | 2 × USB 2.0 |
| General | |
| Power supply | 12 VDC |
| Consumption (without hard disk) |
≤ 10 W |
| Working temperature | -10 to 55° C (14 to 131° F) |
| Working humidity | 10 to 90 % |
| Chassis | 260 mm chassis |
| Dimensions (W × D × H) | 260 × 225 × 48 mm (10.2″ × 8.9″ × 1.9″) |
| Weight (without hard disk) |
≤ 1 kg (2.2 lb) |
