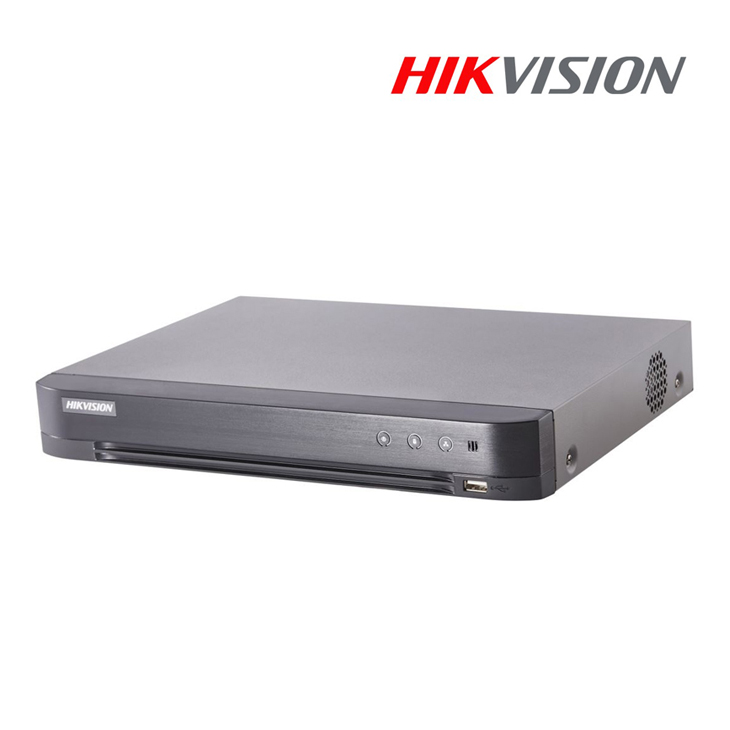

DS-7208HUHI-K1 , HIKVISION Turbo HD DVR
, ,

DS-7208HUHI-K1 , HIKVISION Turbo HD DVR

Add to wishlist
Compare
• H.265 /H.265/H.264 /H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras

• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input

• Connectable to H.265 /H.265/H.264 /H.264 IP cameras

• Up to 5 MP resolution for recording

• HDMI output at up to 4K (3840 × 2160) resolution for DS-7208HUHI-K2

• Long distance transmission over UTP and coaxial cable

• 4/8-ch synchronous playback



රු0.00

8 Turbo HD/AHD/Analog interface input, 8-ch video&4-ch audio input, 1 SATA interface, H.265/H.265 compression, 5MP: 12fps, 4MP: 15fps, 3MP: 18fps, 1920×1080P: 25(P)/30(N) fps/ch, 4K UHD output, alarm I/O: 8/4, support C

ABOUT

Video/Audio Input
Audio Input: 8-ch
Video Compression: H.265 /H.265/H.264 /H.264
Analog and HD-TVI video input: 8-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types: Support HDTVI input: 5MP,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz,
Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVBS input
Video Input Interface: BNC (1.0 Vp-p, 75Ω)
Audio Compression: G.711u
Audio Input Interface: 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)
Video/Audio Output
CVBS Output: 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480
HDMI/VGA Output: VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording resolution: 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate: Main stream:
5 MP@12fps/4 MP@15fps/3 MP@18fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate: 32 Kbps-10 Mbps
Stream Type: Video/Video&Audio
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output: 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate: 64kbps
Dual Stream: Support
Playback Resolution: 5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF
Synchronous Playback: 8-ch
Network management
Remote connections: 128
Network protocols: TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF
Hard Disk Driver
Interface Type: 1 SATA Interface
Capacity: Up to 8 TB capacity for each disk
External Interface
Network Interface: 1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface: 1 USB 2.0 Interface & 1 USB 3.0 Interface
Serial Interface: 1; standard RS-485 serial interface, half-duplex
Alarm Input: 8-ch
Alarm Output: 4-ch
General
Power Supply: 12 VDC
Consumption: ≤ 20W(without hard disks)
Working Temperature: -10 oC to 55 oC (14 oF to 131 oF)
Working Humidity: 10% to 90%
Dimensions: 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight: ≤ 2 kg (4.4 lb)
Categories: , , Brand:
